ToBe | Driver

LED strip power switch

  • Low side power switch
    • Uses on N-channel MOSFET (AO3400)
  • For LED strip PWM controller
    • Up to 5 ports
    • Up to 24V, 4A per port
Main features
Hardware

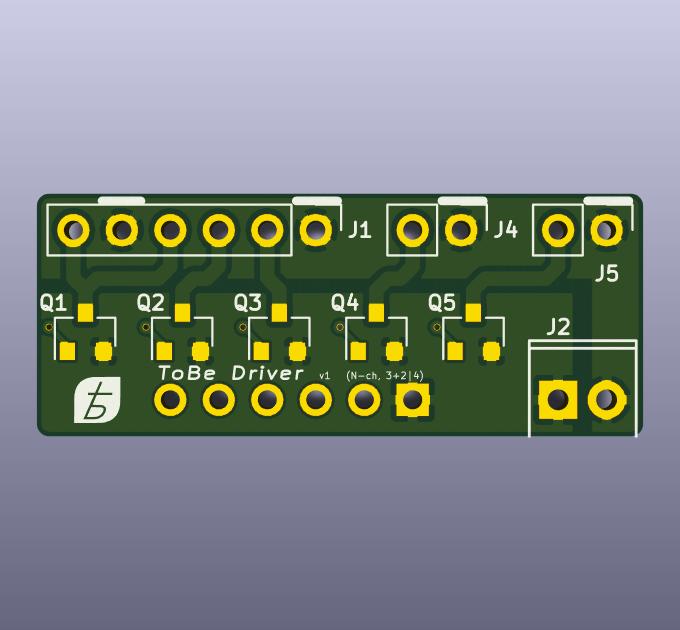

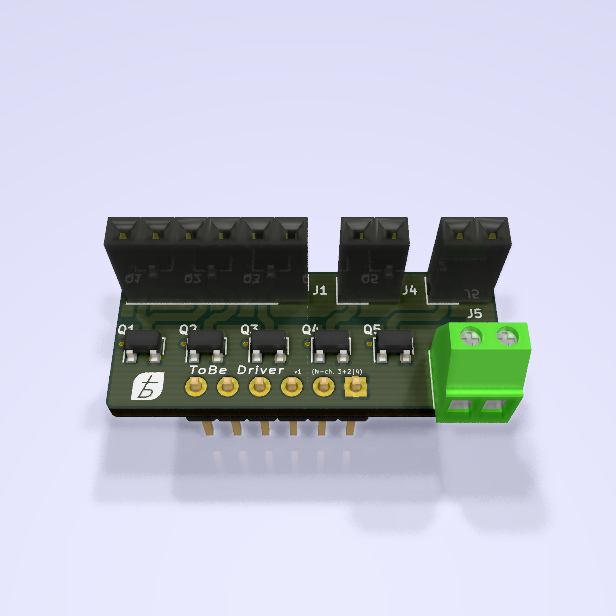

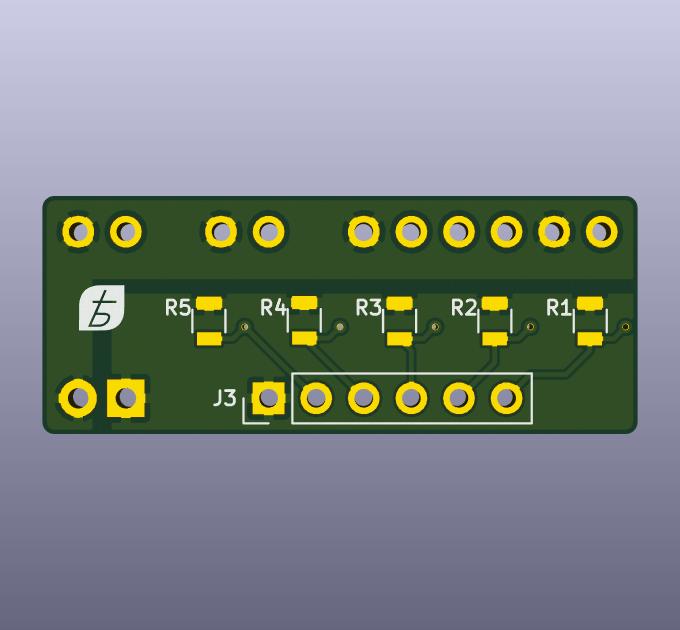

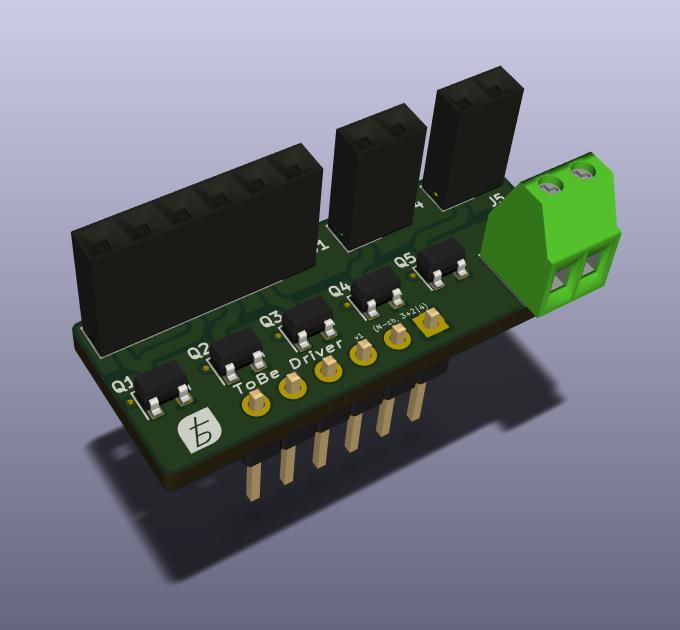

ToBe Driver v1 is produced by OSH Park. It uses spare PCB area from ToBe Pilot v1.1

Resources
Bill of Material
Ref Qty€/unitPart Value Package
R1, R2, R3, R4, R550.01Resistor SMD 1/8W 5% 10kΩ 0805
Q1, Q2, Q3, Q4, Q550.02AO3400 N-channel MOSFET, 30V 5.8A SOT-23
J1 10.03Socket Strip 2.54mm Straight 1x04
J2 10.15Screw Terminal 2.54mm 1x02
J3 10.05Pin Header 2.54mm Straight 1x06
J4, J5 20.03Socket Strip 2.54mm Straight 1x02

Note: for 4xW variant, replace J1 by 2x 1x02 Socket Strips.

Revisions
Rev.ReleasedE.D.A.Description
v12018-02-09KiCad 4.0.7Initial version
Board build runs
Prod. dateRev.PCB Fab. QtyNotes
2018-04-04 v1OSH Park3xBuilt with ToBe Pilot v1.1
